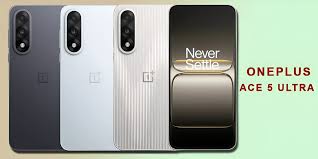

The OnePlus Ace 5 Ultra is a high-spec flagship “killer” offering: it packs a MediaTek Dimensity 9400+ chip, a sharp 6.83-inch AMOLED 144 Hz display, and up to 16 GB RAM with 1 TB storage. The phone includes a 50 MP primary camera with OIS, an 8 MP ultrawide, and a 6,700 mAh battery with 100 W fast charging.
Key Features
27 May 2025
Android 15
ColorOS 15
Mediatek Dimensity 9400+
256GB, 512GB, 1 TB
6.83 inches
Si/C Li-Ion 6700 mAh
50MP+8MP
12GB, 16GB RAM
Technical Specifications
Speed
HSPA, LTE (CA), 5G
Network
2G Band
GSM 850 / 900 / 1800 / 1900
3G Band
HSDPA 850 / 900 / 1700(AWS) / 2100
4G Band
1, 3, 4, 5, 8, 18, 19, 26, 28, 34, 38, 39, 40, 41, 42, 48, 66
5G Band
1, 3, 5, 8, 26, 28, 38, 40, 41, 48, 66, 77, 78 SA/NSA
Launch
Annoucement
27 May 2025
Availability
Available
Body
Dimentions
163.4 x 77 x 8.1 mm
Weight
232 Gram
Build
Glass front, glass back
Display
Screen Type
AMOLED, 1B colors, 144Hz, 3840Hz PWM, HDR10+, Dolby Vision, HDR Vivid, 800 nits (typ), 1400 nits (peak)
Screen Size
6.83 inches, 113.3 cm2 (~90.1% screen-to-body ratio)
Resolution
1272 x 2800 pixels (~450 ppi density)
Protection
Crystal Shield Glass
IP65 dust tight and water resistant (low pressure water jets)
Operating Platform
OS
Android 15, ColorOS 15
Chip Set
Mediatek Dimensity 9400+ (3 nm)
CPU
Octa-core (1x3.73 GHz Cortex-X925 & 3x3.3 GHz Cortex-X4 & 4x2.4 GHz Cortex-A720)
GPU
Immortalis-G925 MC12
Memory
external Memory
No
Internal Memory
256GB 12GB RAM, 256GB 16GB RAM, 512GB 12GB RAM, 512GB 16GB RAM, 1TB 16GB RAM
UFS 4.0
RAM
12GB, 16GB RAM
Camera
Single Camera
50 MP, f/1.8, 24mm (wide), 1/1.56", 1.0µm, PDAF, OIS
Dual Camera
8 MP, f/2.2, 16mm, 112˚ (ultrawide), 1/4.0", 1.12µm
Featues
LED flash, HDR, panorama
Video
4K@30/60fps, 1080p@30/60/120/240fps, gyro-EIS, OIS
Selfie camera
Single
16 MP, f/2.4, 23mm (wide), 1/3", 1.0µm
Feature
HDR, panorama
Video
1080p@30fps, gyro-EIS
Connectivity
WLAN
Wi-Fi 802.11 a/b/g/n/ac/6/7, dual-band
Bluetooth
5.4, A2DP, LE, aptX HD, LHDC 5, BLE Audio
Positioning
GPS (L1+L5), GLONASS (G1), BDS (B1I+B1c+B2a+B2b), GALILEO (E1+E5a+E5b), QZSS (L1+L5), NavIC (L5)
NFC
Yes
USB Type
USB Type-C 2.0
Data
2G GSM, 3G HSPA, 4G LTE, 5G capable
Features
Sensors
Fingerprint (under display, optical), accelerometer, gyro, proximity, compass
Loud Speeker
Yes, with stereo speakers
Battery
Type & Capacity
Si/C Li-Ion 6700 mAh
Battery Charging
100W wired, PD, 100% in 39 min
7.5W reverse wired
Bypass charging
Misc
SIM
Nano-SIM + Nano-SIM
Color
Blue, Black, Titanium
